Known Bugs and Issues

  • All operational axes must be persisted.

  • Create a hole in a solid, try and create a face on a curved face. No error is presented to the user.

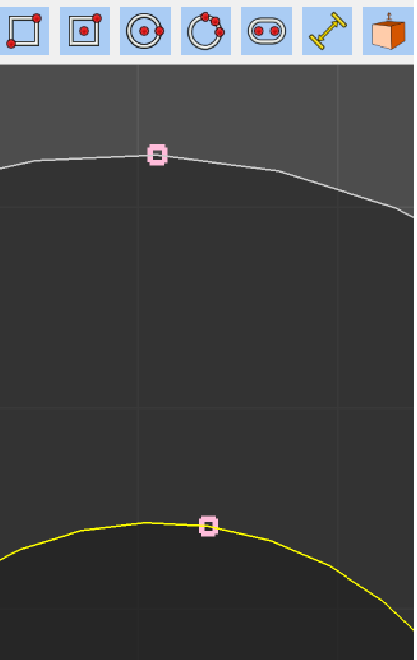

  • For curved surfaces, snapping needs to be computed at runtime, annotate snapping on actual curve and apply results. Screenshot

  • Subdivision for shapes should be based on zoom or dist of object to camera.

  • Shp list should have a field for selected, and the field should reflect what is selected in the viewer.

  • Extrude should be in projection mode.

  • Create sketch from face needs a temporary face select mode. When mode is changed it should go back to the previous mode. Other tools like chamfer need to do this also.

  • Add sketch node should have the ability to allow the user to specify placement distance from another node.

  • Ability to show/hide sketch nodes

  • Underlay: edge calibration can introduce shear (non-orthogonal bitmap axes). The transform panel currently assumes center + half extents + rotation (orthogonal). Need a full six-parameter affine in the UI so users can adjust position, scale, rotation, and shear without losing calibration.

  • For selection mode, not all of the current modes are useful.

  • Scale mode broken.

  • Add concept of dim or dimension, use with node, a measurement, but does not participate in generating faces.

  • Vendor and commit third_party/ImGuiColorTextEdit/ into this repository; it has not been maintained upstream for a long time and we should pin a known-good copy.

  • ~~After an edge is split by its midpoint, the split edges do not have midpoints to snap to~~ - FIXED
